EACHINE CCD 800TVL 148° CAMERA + 5.8GHz 600mW TRANSMITTER

Detailní popis produktu

Specification of Camera:
Item Brand:Eachine
Item Name :800tvl CCD 148 Degree FPV Camera Lens w/ 5.8G 600mW Transmitter
FOV:148°
Power Supply: 3.6-5.5V(powered  by image transmission)
Current: 60mA @5V
Sensor: 1/3” CCD Over 800TVL
Type:PAL / NTSC (NOT free switch)
Resolution: 800TVL
Operating temperature: -20° C - 70° C
Camera Size: 32 X 32 X 23.5mm
 Lens Size(Length x Diameter): 15.3mm X 14mm
Lens: 2.6mm IR coated
Weight: 12g

Specification of Transmission:
Modulation Mode: FM
Supported Video Format: NTSC/PAL
Output  Impedance: 75 Ohm
Output Signal Strength: 27~28dBm.
Output Power: 600mW
Operating Channel: 32CH
Operating Voltage: 7V - 24V
Operating Current: 190mA
Video Band Width:6.5 MHz

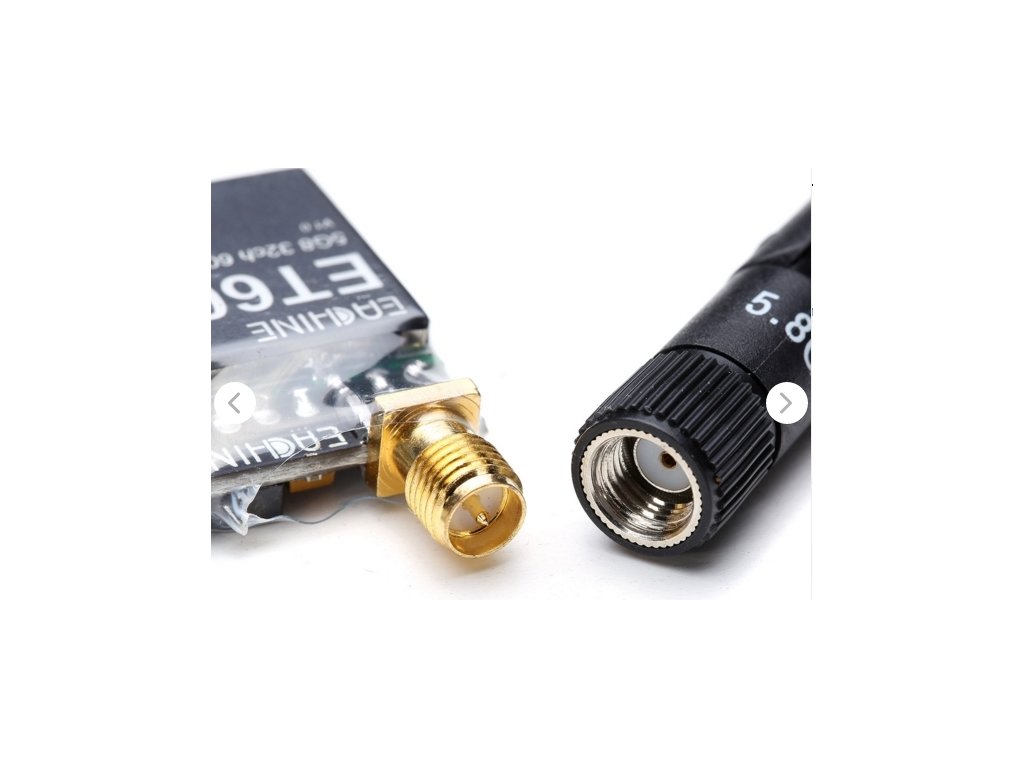

Antenna Connector: RP-SMA
Size: 38mm x 22.5mm x 6mm
Weight: 6g(without antenna)

Features:
- FOV: 160°diagonal 148°horizontal (ideal for fixed camera)
- With 1/3'' CCD sensor
- With lens cap,well protecting the lens
- Performance rivals Cmos. Nice quality low cost.
- Evening low light performance as excellent as highlight during the day
- Imaging parameters and the wide angle rigorous debugging  for FPV

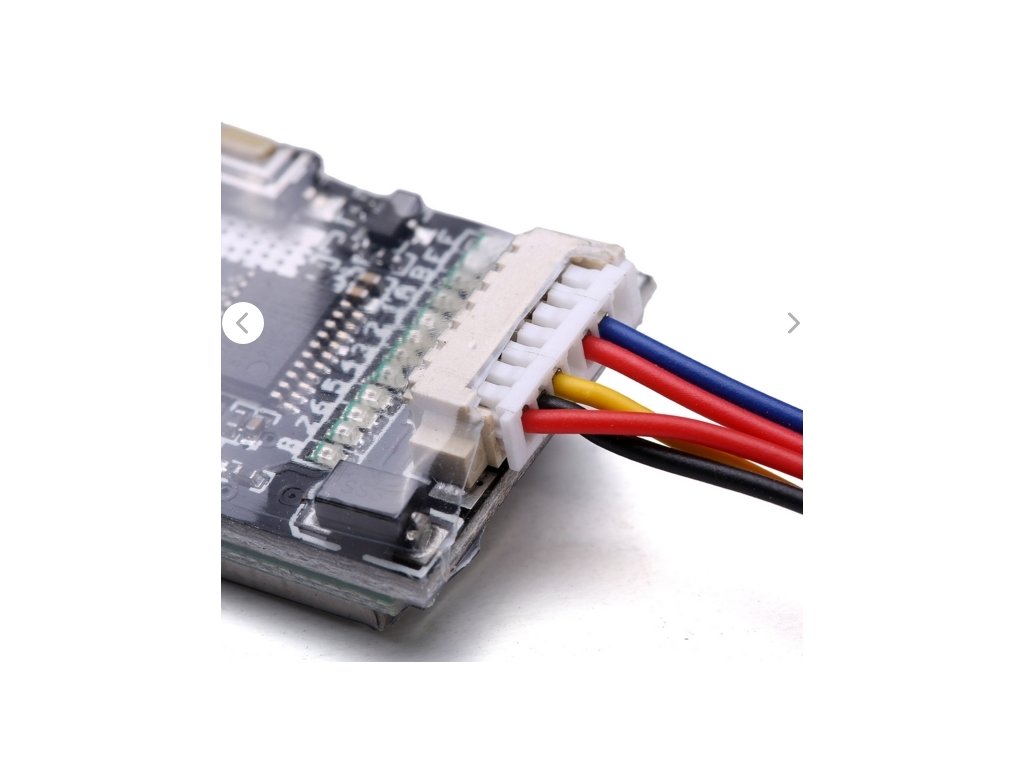

- Special cable connected the camera to image transmission,very convenient and concise
- Super lightweight,ultra-low power consumption,suitable for RC multicopter
- Can be mounted on frame,compatible with most of the 250mm frame
- Image settings have been FPV tuned through hours of flight testing to ensure great performance in challenging lighting conditions (no problem to fly in low afternoon sunlight).
- Low power and light weight make this camera a perfect choice for smaller aircraft. Come with tiny 600mW 32ch FPV professional video transmitters.
- Compatible with ImmersionRC Boscam, Foxtech and other generic brand FPV receivers within the same frequency range.

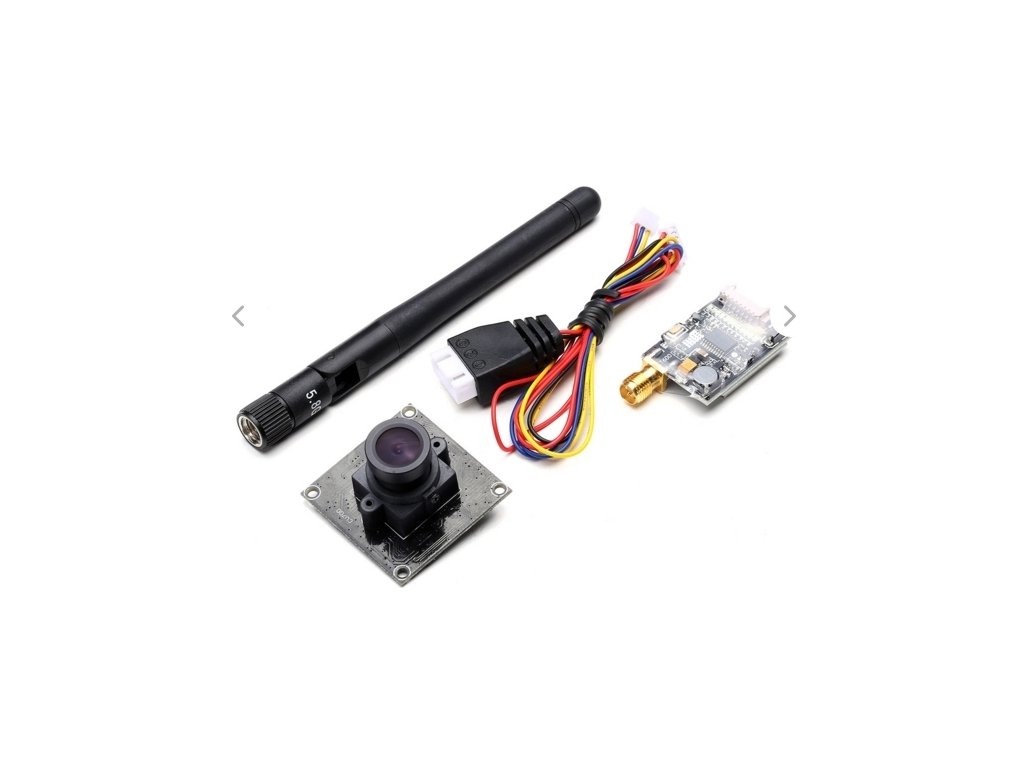

Package Included:
1x Eachine 800TVL camera

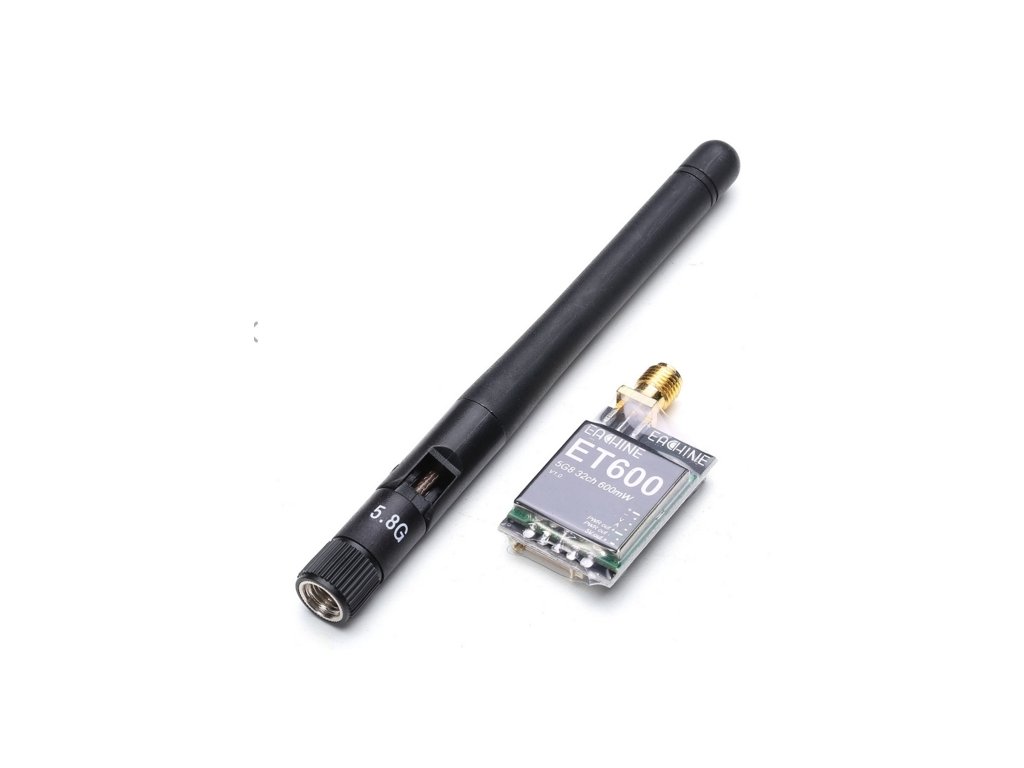

1x 5.8G image transmission
1x Antenna(2db)

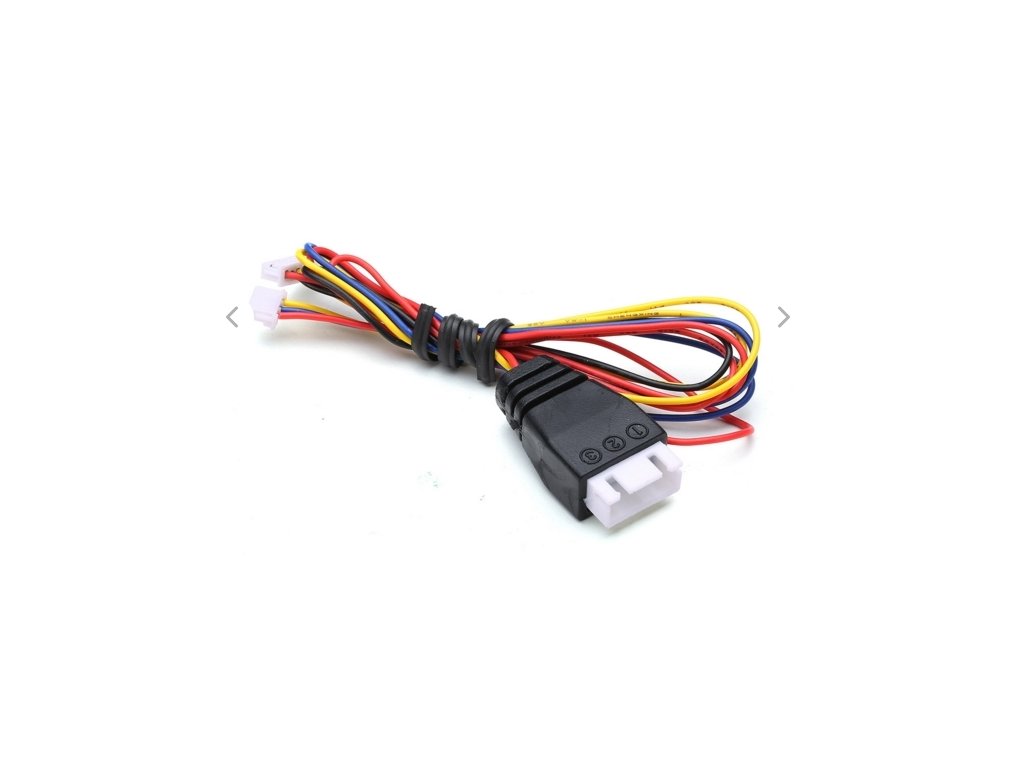

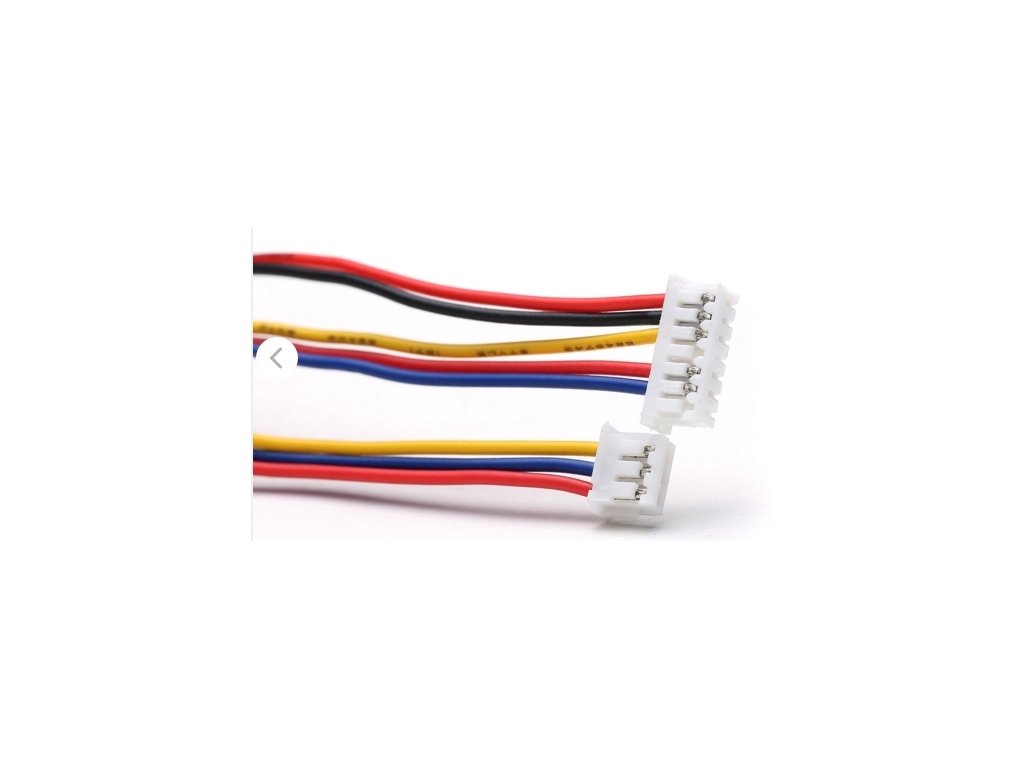

1x 5P Cable
1x Manual
