12 inch 800 x 600 LCD Sunlight Viewable FPV Monitor w/32CH Dual Receiver, PIP (EU plug)

Detailní popis produktu

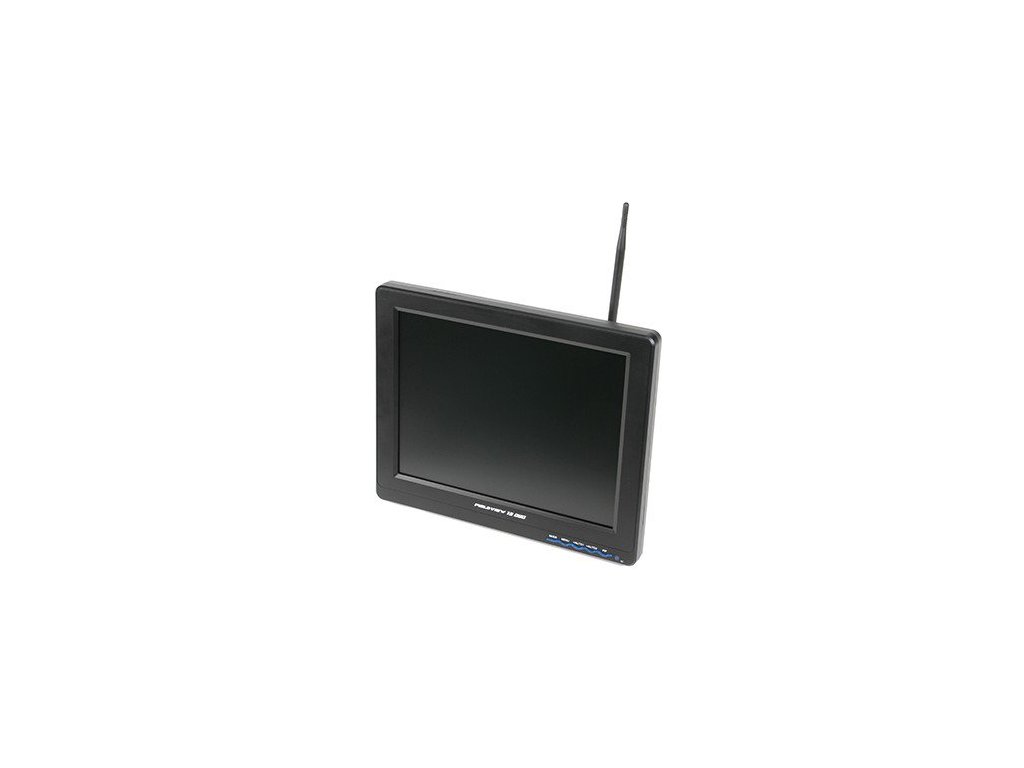

The Fieldview 12 DUO is a high quality 12 inch FPV Monitor. This exciting product integrates high-sensitivity, dual 32CH 5.8GHz receivers with an auto searching, high-definition monitor with a PIP function. What could be better than watching two racing drones on the same monitor?

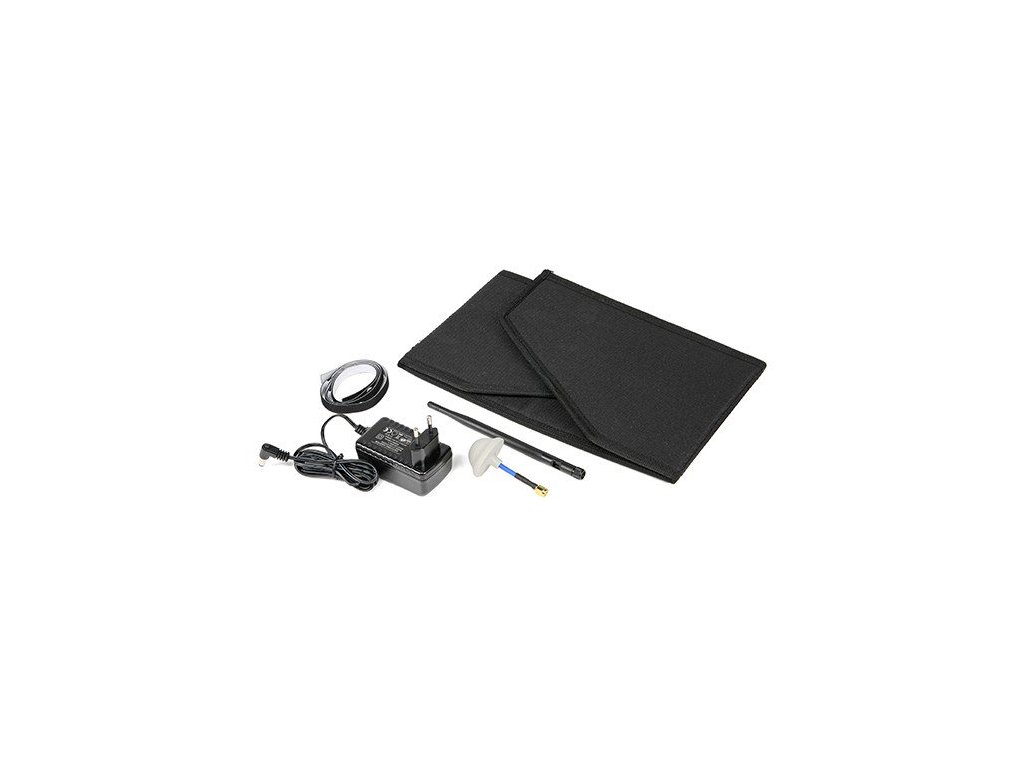

Its high contrast, anti-glare, high-definition monitor makes it an excellent screen for both indoor and outdoor viewing. There is even a foldable screen shroud provided to enhance the already excellent picture.

This model can also be used as a base station with two separate RF video outputs that could allow two people to view channels on their goggles. There is even a HDMI input connector to allow viewing from any device with an HDMI output. You could use it as an external monitor for your laptop.

The PIP function of this monitor creates a lot of extra applications that this monitor can be used for such as photography viewfinder, video surveillance, advertising and other applications.

Features:
• Dual receivers for high-quality reception
• 12inch HD display with 800:1 contrast
• Dual 32-channel receivers can be set to different channels
• Newest Channel Auto searching, selection via button to improve the accuracy and convenience of channel selection
• Equipped with two AV outputs, can connect several monitors at the same time
• PIP function, you can watch the reception of both RF channels at the same time
• Headphone socket
• Picture Screen Markers and Center Marker

Specs:
Panel Size: 12.1 inch TFT LCD
Resolution: 800x600
Backlight: LED
Dot Pitch: 0.3075(H) x 0.3075(V) mm
Aspect Ratio: 4:3
Brightness: 330cd/m2
Contrast: 800:1
Response Time: 30ms
Viewing Angle: 80°/80°(L/R) 60°/80°(U/D)
Input Signal: RF1, RF2, HDMI
Output Signal: Audio/Video (RF1/RF2)
Audio: Stereo headphone output, Speaker
Video Color System: PAL, NTSC
HDMI Support Format: 1080/24p/25p/30p/; 50i/50p; 60i/60p; 720/50p/60p; 480i/480p; 76i/576p
Antenna Mounting : RPSMA
Input Voltage: DC 9~18V

Power Consumption: <=15W
RF Receiving Frequency: 5.8 GHz, 32 channel (Auto Searching)
RF Wireless Receiving: typical value -90dBm
Frequency Stability: ±100ppm
Size: 300x245x45.3mm (without antennas)
Weight: 1130g

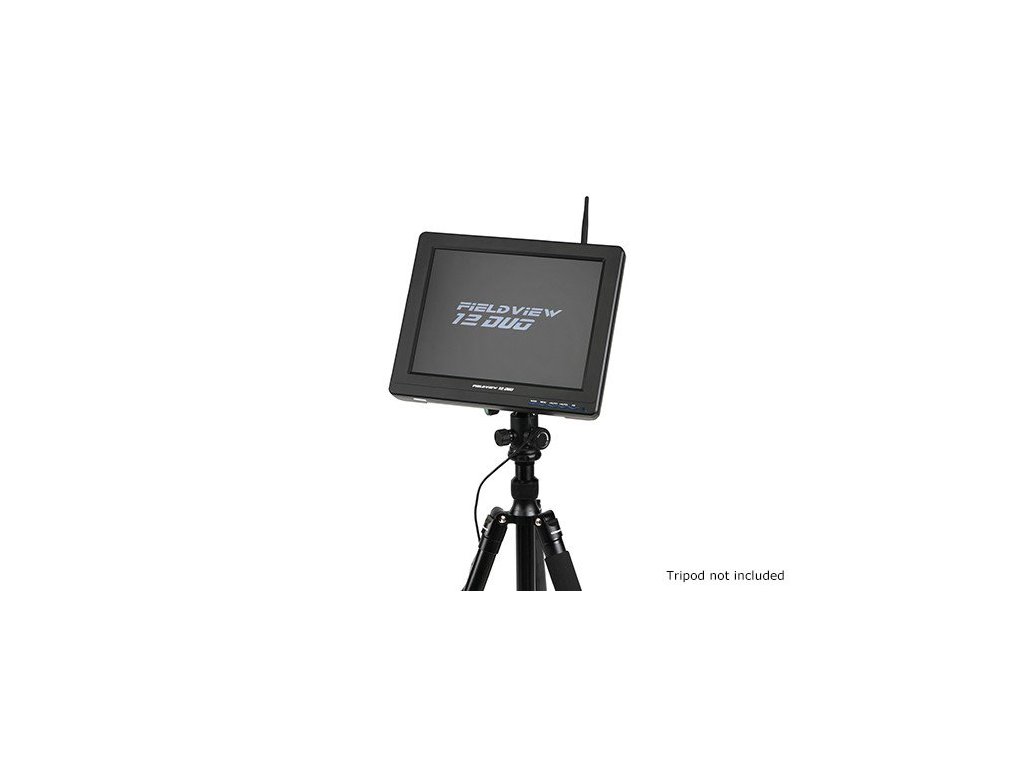

Installation Method: Back plate 100x100mm VESA install hole
Working Temperature: -20C~50C
Storage Temperature:-30C~60C

Channels:
A: 5865 5845 5825 5825 5785 5765 5745 5725
B: 5733 5752 5771 5790 5809 5828 5847 5866
C: 5705 5685 5665 5645 5885 5905 5925 5945
D: 5740 5760 5780 5800 5820 5840 5860 5880
